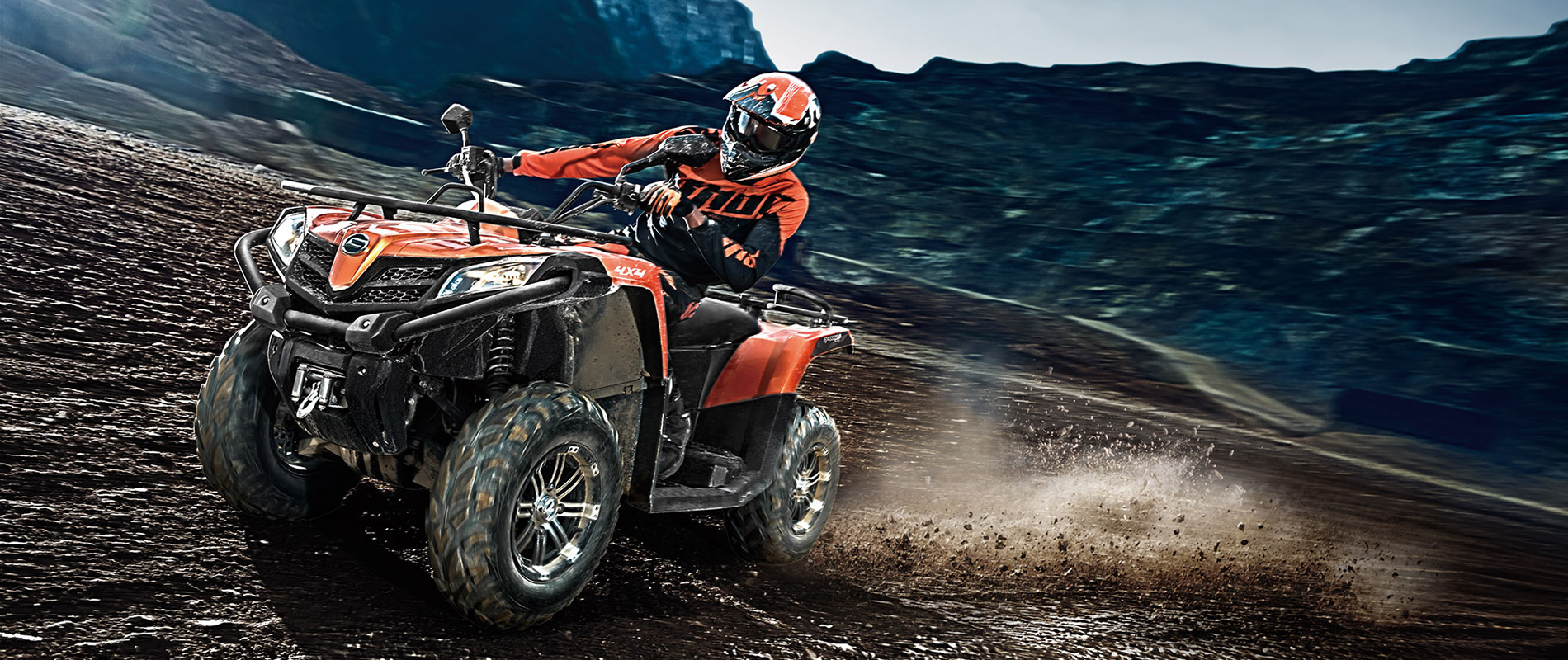

CFORCE 520 S AGRI

The CFORCE 520 S/L is equipped with the latest evolution of the CFMOTO medium displacement engine. With a cubic capacity of 495 cm3, this 34 HP engine with a single overhead camshaft is at the cutting edge of technology: liquid-cooled and powered by a Bosch 40 mm throttle body. With ESP as standard and the choice of a single or double seat, the 520 S/L is a concentrate of CFMOTO DNA.

CFORCE 520 S AGRI

The CFORCE 520 S/L is equipped with the latest evolution of the CFMOTO medium displacement engine. With a cubic capacity of 495 cm3, this 34 HP engine with a single overhead camshaft is at the cutting edge of technology: liquid-cooled and powered by a Bosch 40 mm throttle body. With ESP as standard and the choice of a single or double seat, the 520 S/L is a concentrate of CFMOTO DNA.
Engine TypeMonocylinder, 4-valve, SOHC, EFI, Liquid cooled
Displacement495 cm3
Maximum Power28 kW / 6800 rpm / 37.5 hp*
Maximum Speed60 km/h
Fuel SupplyEFI
IgnitionECU
TransmissionCVT
DriveSwitchable 2WD/4WD
*Maximum power is depending on the regulation of the vehicle.
BrakeHydraulique
SuspensionDouble triangle
Shock AbsorberOil / Gas shock absorber
Front Rim12 x 6.0 AT Aluminium Alloy / Steel
Rear Rim12 x 7.5 AT Aluminium Alloy / Steel
Dimensions (L x W x H)2090 x 1100 x 1150 mm
Wheelbase1260 mm
Seat Height540 mm
Minimum Ground Clearance250 mm
Curb Weight345 kg
Payload Capacity150 kg
Fuel Capacity15 L

Non-contractual pictures, may differ from reality.

LED Lights

Energy-efficient LED lights of uniform brightness and better penetration are in use to ensure better visibility at night time.

NITROGEN GAS CHARGED SHOCKS

The synergy between the terrain, comfort and handling is controlled by our premium gas-charged shocks with adjustable rebound and compression damping.

GROUND CLEARANCE

With 25cm ground clearance, the vehicle realizes a better traffic ability that are able to conquer tough terrain in a easy way.
